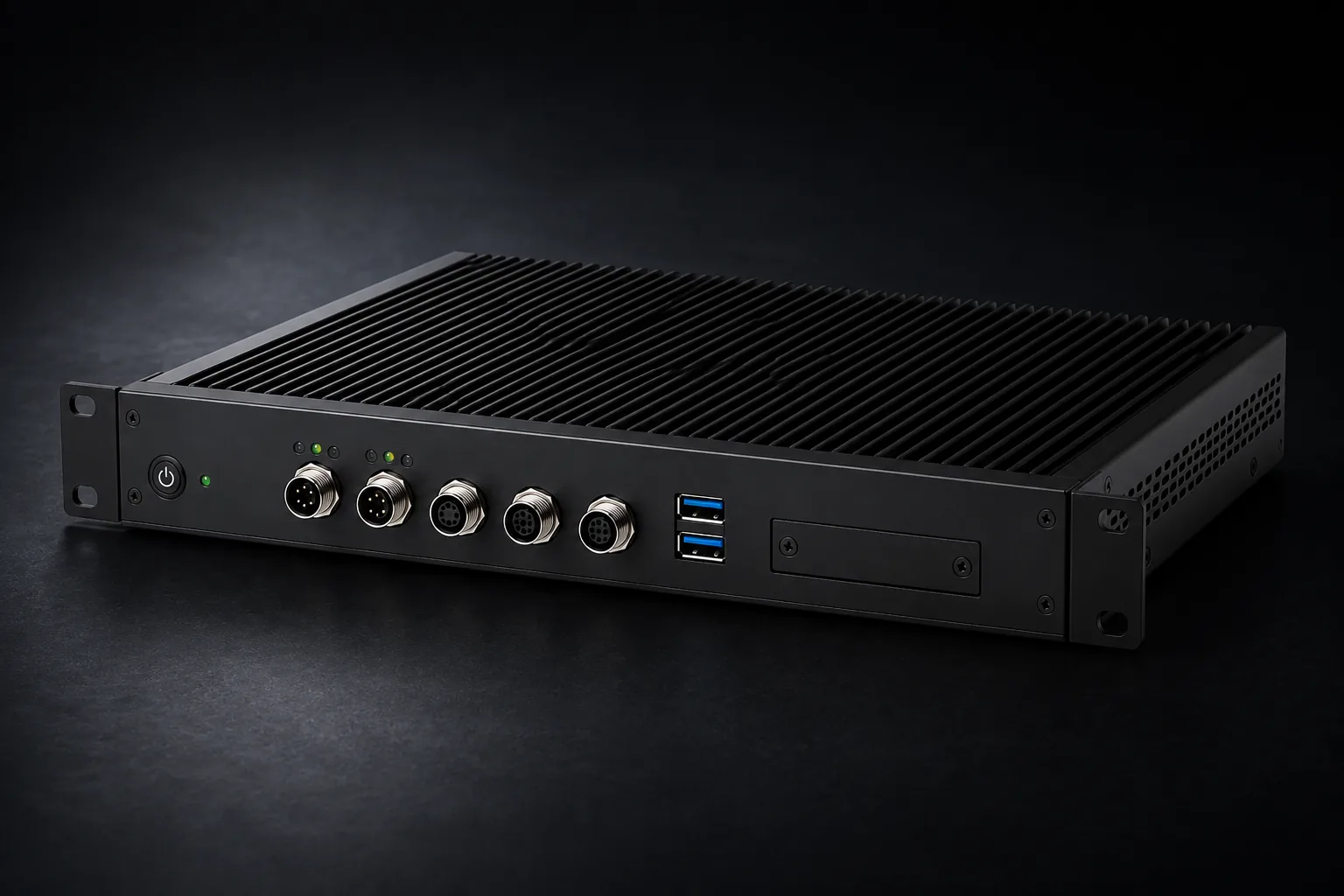

RDP-J816
NVIDIA Jetson Orin NX 1U server — 70/100 TOPS, 5× M12 Gigabit, designed for rail track foreign-object detection
Application Scenarios
- Security Surveillance
- Smart Manufacturing
- Rail Transit
- Smart City
- Smart Transportation
Key Features
- 70/100 TOPS compute in a standard 1U chassis (200mm depth)
- 5× M12 Gigabit Ethernet ports with dedicated IP and aviation-standard connectors
- Rail track scanning via multi-sensor fusion for foreign-object detection
- Mass storage: SSD plus 2.5"/3.5" SATA HDDs (optional)
- Active cooling for stable intensive operation
- Reduces collision risk and false braking alarms
Product SKU
| Model | RDP-J816 |
|---|---|
| AI Platform | NVIDIA Jetson Orin NX |
| Form Factor | 1U Rack Edge AI · 483 × 205 × 44.4mm |
| Origin | Designed and manufactured in India by RDP Technologies Limited, Hyderabad |
AI Compute
| AI Computing Power | 70 / 100 TOPS (Super Mode: 117 / 157 TOPS) |
|---|---|
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU | 6-core / 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU |
Memory & Storage
| Memory | 8GB / 16GB 128-bit LPDDR5 · 102.4GB/s |
|---|---|
| Storage | Supports external NVMe |
| Expansion (M.2 Key M) | 1× 2280 PCIe SSD · 2× SATA3 HDD (1×3.5" or 2×2.5") (optional) |
Video
| Video Encoding | Up to 1× 4K60 · 3× 4K30 · 6× 1080p60 · 12× 1080p30 (H.265) |
|---|---|
| Video Decoding | Up to 1× 8K30 · 2× 4K60 · 4× 4K30 · 9× 1080p60 · 18× 1080p30 (H.265) |
Networking & Wireless
| Ethernet | 5× M12 Gigabit Ethernet ports, dedicated IP |
|---|
I/O & Interfaces
| Display | 1× HDMI |
|---|---|
| USB | 2× USB 3.0 Type-A · 1× Type-C USB2.0 · 1× Type-C debug |
Power & Electrical
| Power Input | DC110V, interface type M12 4X Acode |
|---|---|
| Power Interface | M12 4X Acode |
| Buttons / Indicators | Recover / Rst (2 buttons) · 2 indicator lights |
Physical & Environment
| Dimensions | 483 × 205 × 44.4mm |
|---|---|
| Operating Temperature | −20–60°C |
| Operating Humidity | 5%–95% non-condensing |
| Cooling | Fan cooling |
Compliance & Warranty
| Software | Ubuntu 20.04 · NVIDIA JetPack SDK (pre-installed) |
|---|---|
| Compliance & Certifications | BIS · CE · FCC · RoHS · ISO 9001 · MeitY Recognised · PLI 2.0 · GeM Listed |
| Warranty | 3 years parts · 3 years labor · 1 year cross-ship (3/3/1 standard) |
| Support | PAN-India SLA-backed service network across 300+ PIN codes |
Download technical resources and guides for RDP-J816.
Request a quote for RDP-J816
Tell us your edge deployment requirements — workload, sensors, environment, and target timeline. Our edge AI team will spec the right configuration and provide a quote with SLA commitment in writing.
