Reference Architecture RA-006

Enterprise Private Cloud

VMware vSphere-based private cloud for 500+ virtual machines with vSAN hyper-converged storage, NSX networking, and complete disaster recovery infrastructure. Designed for system integrators deploying enterprise-grade infrastructure and corporate IT modernization projects.

System Integrators Corporate IT Manufacturing Large Enterprises

500+ VM Capacity

8 Nodes vSphere Cluster

200 TB vSAN Storage

99.99% Uptime SLA

Executive Summary

Production-grade VMware SDDC for enterprise workloads with full HA, DRS, and DR capabilities.

Use Case

Enterprise application hosting, database workloads, development/test environments, and legacy application modernization with full DR protection.

Challenges Addressed

Public cloud costs, data sovereignty requirements, latency-sensitive workloads, and complex compliance requirements (GDPR, SOC2, industry-specific).

Key Outcomes

99.99% uptime, 15-minute RPO/RTO, predictable costs, on-premises data control, and VMware ecosystem compatibility.

Make in India Compliant

VMware VCF Ready

vSAN Certified

DR Capable

Architecture Overview

VMware Software Stack

vSphere 8

Hypervisor & vCenter Management

vSAN 8

Hyper-converged Storage

NSX-T

Software-Defined Networking

vRealize Suite

Operations & Automation

Site Recovery

Disaster Recovery Orchestration

Tanzu (Optional)

Kubernetes Integration

vSphere HA/DRS

High Availability & Load Balancing

vMotion/Storage vMotion

Live Migration

Detailed Bill of Quantities

Complete hardware specification for 500+ VM private cloud.

vSphere Cluster Nodes (vSAN Ready)

8 Units

Component	Specifications	Qty	Purpose
vSAN Ready Node (2U) RDP-VSAN-2U-HCI	2U Rack Server Dual Intel Xeon Gold 6338 (32C/64T each) 1TB DDR4-3200 ECC RAM (16× 64GB) 2× 1.6TB NVMe SSD (vSAN Cache Tier) 8× 7.68TB NVMe SSD (vSAN Capacity) 4× 25GbE SFP28 (vSAN + vMotion) 2× 10GbE SFP+ (VM Traffic) 1× 1GbE (Management) Dual 1200W Titanium PSU TPM 2.0, Secure Boot, vSAN Certified ~50TB raw capacity per node	8×	vSphere cluster with vSAN HCI

Management Infrastructure

4 Units

Component	Specifications	Qty	Purpose
vCenter / NSX Manager Server RDP-SRV-2U-MGMT	2U Rack Server Intel Xeon Silver 4314 (16C/32T) 256GB DDR4-3200 ECC RAM 4× 1.92TB NVMe SSD RAID10 4× 10GbE SFP+ Ports Dual 800W Redundant PSU	2×	vCenter, NSX, vRealize (HA pair)
Witness / Backup Server RDP-SRV-1U-WIT	1U Rack Server Intel Xeon E-2336 (6C/12T) 64GB DDR4 ECC RAM 2× 960GB SSD RAID1 2× 10GbE + 2× 1GbE Dual 500W PSU	2×	vSAN Witness, Veeam proxy

Backup & Archive Storage

2 Units

Component	Specifications	Qty	Purpose
Backup Repository RDP-NAS-4U-BKP	4U 24-Bay Storage Server Intel Xeon Silver 4314 (16C/32T) 128GB DDR4 ECC RAM 2× 1.92TB NVMe SSD (Cache) 24× 18TB Enterprise SATA (RAID6) 4× 25GbE SFP28 Ports ~320TB usable per unit Veeam-optimized ReFS/XFS	2×	Primary backup repository (~640TB)

Network Infrastructure

Enterprise Fabric

Component	Specifications	Qty	Purpose
Spine Switch (25/100G) SW-SPINE-32X100G	32× 100GbE QSFP28 Ports 6.4 Tbps Switching Capacity Layer 3, VXLAN, BGP-EVPN NSX-T TEP Optimized Dual Hot-swap PSU	2×	Spine layer (vSAN, vMotion)
Leaf Switch (25G) SW-LEAF-48X25G	48× 25GbE SFP28 Ports 8× 100GbE QSFP28 Uplinks Layer 2/3, MLAG NSX-T VTEP Ready Dual Hot-swap PSU	2×	Leaf layer (host connectivity)
Management Switch SW-MGMT-24X10G	24× 10GbE SFP+ Ports 4× 25GbE SFP28 Uplinks Layer 2 Managed Out-of-band Management Network	1×	Management & iLO/IPMI

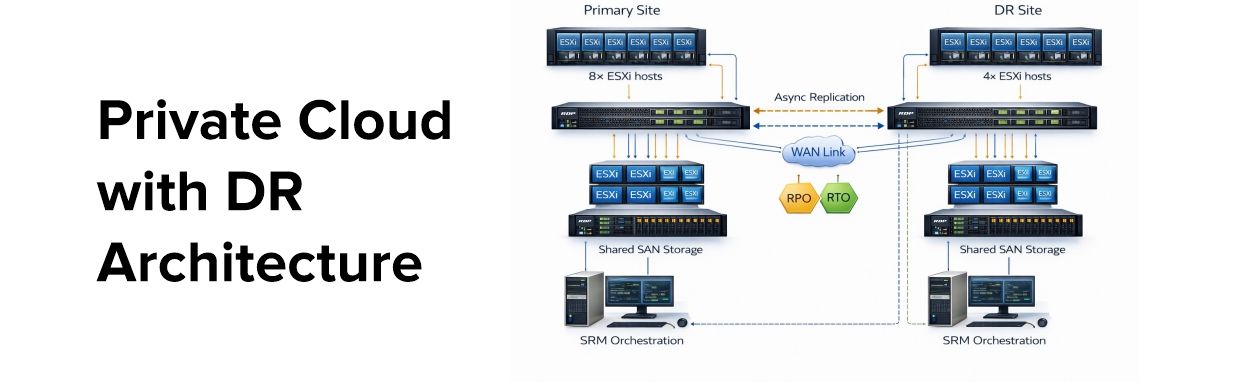

Disaster Recovery Architecture

Site Recovery Manager orchestrated DR with async replication to secondary site.

Primary Site

Production workloads
8-node vSphere cluster
~200TB vSAN

● ACTIVE

Async Replication

RPO: 15 min RTO: 1 hour

DR Site

Recovery infrastructure
4-node vSphere cluster
~100TB vSAN

○ STANDBY

DR Specifications

Orchestration VMware SRM
Replication vSphere Replication / Zerto
RPO 15 minutes
RTO 1 hour
Test Failover Non-disruptive

Backup Strategy

Backup Software Veeam B&R
Daily Full Synthetic full weekly
Retention 30 days local, 90 days archive
Off-site Copy Daily to DR site
RTO (Backup) 4 hours

Technical Specifications Summary

Total vCPU

1,024

Logical cores across 8 hosts

Total RAM

8 TB

ECC memory pool

vSAN Storage

~200 TB

All-flash usable (FTT=1)

Backup Storage

~640 TB

Deduplicated capacity

Power Budget

~22 kW

Typical operating load

Rack Space

28U

Primary site footprint

VMware Licensing Guidance

Recommended Editions

vSphere Enterprise Plus
vSAN Enterprise
NSX-T Advanced (Optional)
vRealize Operations Advanced
Site Recovery Standard

License Metrics

vSphere Per CPU socket
vSAN Per CPU socket
NSX-T Per CPU socket
vRealize Per VM or per CPU
Total Sockets 16 (8 hosts × 2)

VMware licensing is procured separately. Contact your VMware partner or RDP for bundled pricing. VCF (VMware Cloud Foundation) bundles available for simplified licensing.

Reference Architecture Disclaimer

This reference architecture is provided for planning and discussion purposes. VMware licensing costs are not included in hardware BOQ and must be procured separately. vSAN capacity varies based on storage policy (FTT, deduplication, compression). DR site sizing depends on RPO/RTO requirements. Final configuration will be customized based on workload analysis and growth projections.
