Smart City Surveillance Infrastructure
City-wide video surveillance and analytics infrastructure for safe city initiatives. This reference architecture addresses 1,000+ camera deployments with centralized storage, AI-powered video analytics, and integrated command center infrastructure—designed for Smart City Mission and MeitY project requirements.
Executive Summary
Purpose-built infrastructure for city-wide surveillance with real-time AI analytics and centralized command operations.
Use Case
Centralized video surveillance for Smart City Mission projects with real-time monitoring, incident detection, and forensic analysis capabilities.
Challenges Addressed
Massive video ingestion, long-term retention compliance, real-time AI analytics, multi-site aggregation, and 24×7 uptime requirements.
Key Outcomes
90-day video retention, sub-second threat detection, 99.9% uptime SLA readiness, and GeM/Make in India compliance.
Architecture Overview
Three-tier architecture with edge collection, core processing, and centralized storage layers.

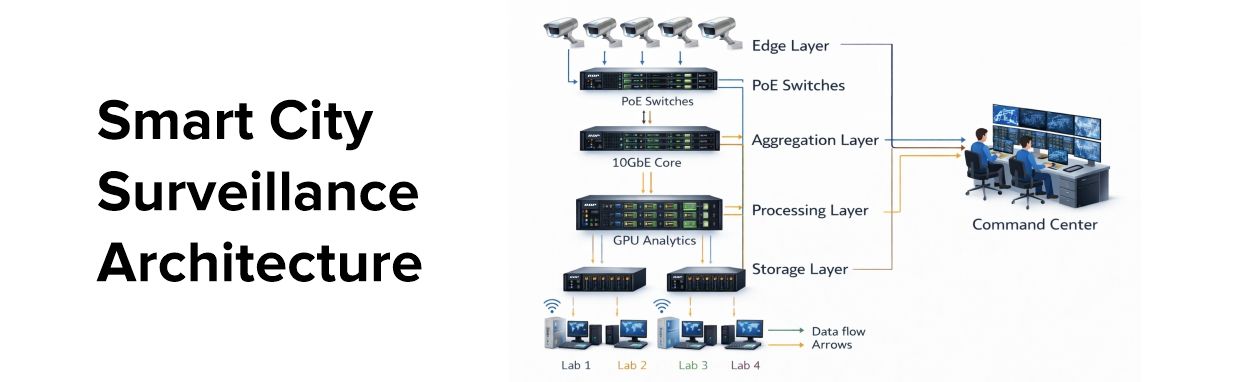

Architecture Layers
- Edge Layer Camera + PoE Switches
- Aggregation Layer 10GbE Core Network
- Processing Layer GPU Analytics Servers
- Storage Layer Scale-Out NAS Arrays
- Management Layer VMS + Command Center
Data Flow
- Ingest Rate ~4 Gbps sustained
- Analytics Processing Real-time + batch
- Storage Write Sequential optimized
- Retrieval Random access indexed
- Replication Optional DR site
Detailed Bill of Quantities
Complete hardware specification for 1,000+ camera deployment with AI analytics.
Storage Systems
4 Units| Component | Specifications | Qty | Purpose |
|---|---|---|---|
|

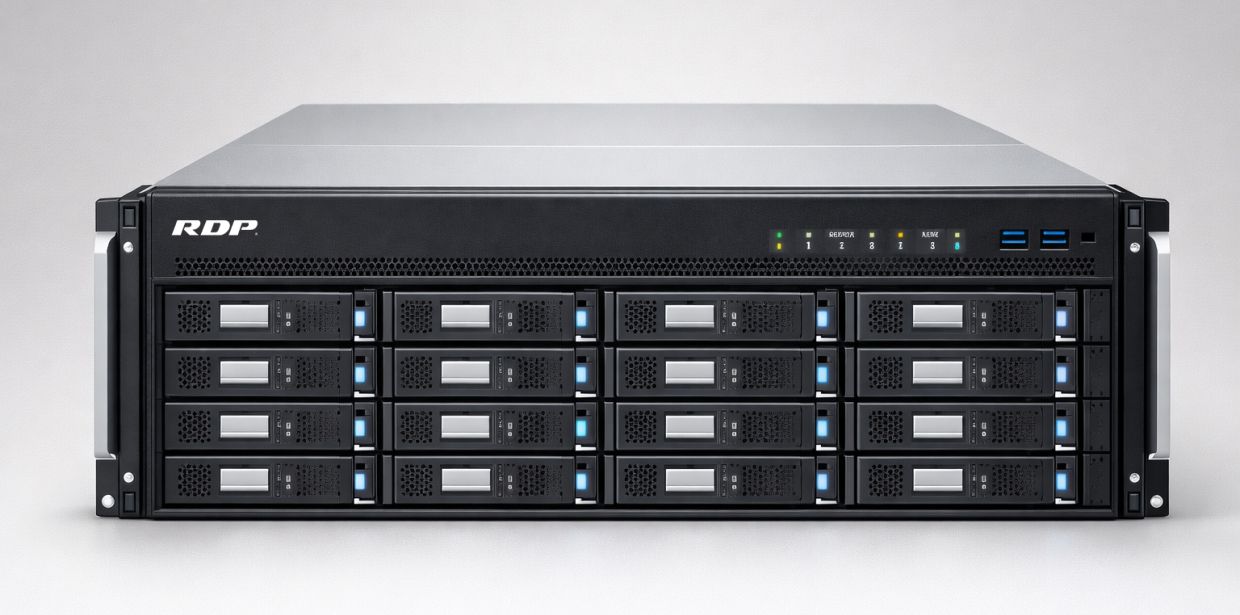

Primary Video Storage Array
RDP-NAS-4U-36B
|
|
2× | Primary video recording & retention |
|
Metadata & Analytics Storage
RDP-SRV-2U-NVMe
|
|
2× | AI metadata, search indexes, hot data |
GPU Analytics Servers
2 Units| Component | Specifications | Qty | Purpose |
|---|---|---|---|
|

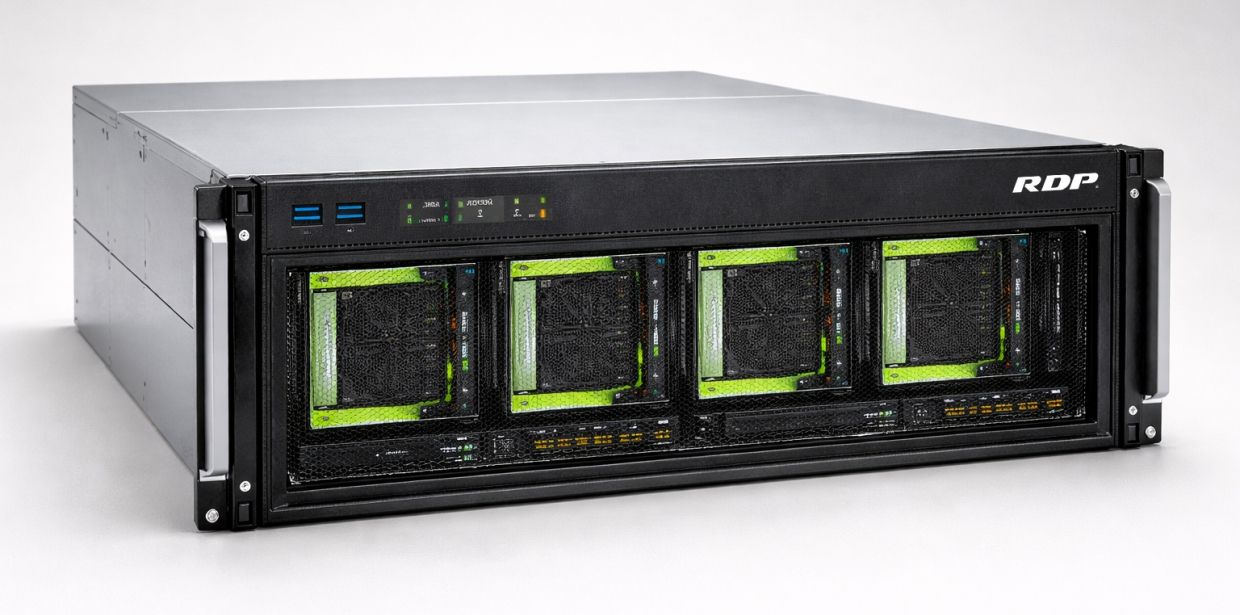

AI Video Analytics Server
RDP-GPU-4U-8G
|
|
2× | Real-time video AI: face recognition, ANPR, behavior analytics |
Rack Servers
4 Units| Component | Specifications | Qty | Purpose |
|---|---|---|---|
|
VMS Application Server
RDP-SRV-2U-VMS
|
|
2× | Video Management System (HA pair) |
|
Command Center Server
RDP-SRV-2U-CC
|
|
2× | Command center display & situational awareness |
Network Infrastructure
5 Units| Component | Specifications | Qty | Purpose |
|---|---|---|---|
|
Core Aggregation Switch
SW-CORE-48X10G
|
|
2× | Data center core switching (stacked) |
|
Management Switch
SW-MGMT-24X1G
|
|
1× | Out-of-band management network |
|
Transceivers & Cabling
OPTICS-KIT-DC
|
|
1× Kit | Inter-rack connectivity |
Rack & Power Infrastructure
Supporting| Component | Specifications | Qty | Purpose |
|---|---|---|---|
|
42U Server Rack
RACK-42U-800D
|
|
1× | Primary equipment housing |
|
Intelligent PDU
PDU-32A-3PH-MON
|
|
2× | Dual-feed power distribution |
|
Online UPS System
UPS-20KVA-3PH
|
|
1× | Uninterruptible power supply |
Technical Specifications Summary
Total Storage
Usable capacity across primary NAS arrays with RAID6 protection
GPU Compute
384GB total GPU memory for real-time AI analytics
Camera Support
Concurrent IP cameras at 4MP 15fps average
Retention Period
Full resolution continuous recording
Power Draw
Typical operating load with N+1 redundancy
Rack Space
Within single 42U rack enclosure
Power & Cooling Requirements
Site preparation specifications for data center or equipment room deployment.
Power Budget
| Component | Qty | Max Power | Typical |
|---|---|---|---|
| Storage Arrays (4U) | 2 | 1,400W | 1,000W |
| NVMe Storage (2U) | 2 | 1,100W | 800W |
| GPU Servers (4U) | 2 | 4,400W | 3,200W |
| Rack Servers (2U) | 4 | 1,600W | 1,200W |
| Network Switches | 3 | 450W | 350W |
| Total | — | 18.9 kW | 14.5 kW |
Cooling & Environment
- Cooling Capacity Required ~55,000 BTU/hr
- Operating Temperature 18°C – 27°C
- Relative Humidity 40% – 60% RH
- Airflow Direction Front-to-Back
- Recommended Cooling In-row or Precision AC
- Hot Aisle Containment Recommended
Electrical Requirements
- Input Power 3-Phase 415V AC
- Circuit Breaker 63A 3-Phase
- Power Feeds Dual (A+B Redundant)
- UPS Capacity 20 kVA minimum
- Generator Backup Recommended
Physical Space
- Floor Space 0.88 m² (rack footprint)
- Clearance (Front) 1.2m minimum
- Clearance (Rear) 0.9m minimum
- Floor Load ~800 kg point load
- Ceiling Height 2.7m minimum
Software Stack
Recommended software components for complete surveillance infrastructure.
Operating Systems
- Ubuntu Server 22.04 LTS (GPU Servers)
- Windows Server 2022 (VMS Servers)
- TrueNAS Scale / ZFS (Storage)
- RHEL 9.x (Optional Enterprise)
VMS & Analytics
- Enterprise VMS (Milestone / Genetec / BriefCam)
- NVIDIA Metropolis (AI Analytics)
- DeepStream SDK (Video Processing)
- Custom Analytics Integration APIs
Management & Security
- Zabbix / PRTG (Infrastructure Monitoring)
- Active Directory Integration
- SSL/TLS Encryption (Data in Transit)
- LDAP / RADIUS Authentication
Deployment Timeline
Typical implementation schedule from order to production.
Week 1-2: Site Assessment & Design Finalization
Site survey, power/cooling verification, final BOQ confirmation, procurement order placement.
Week 3-4: Hardware Manufacturing & QA
Server assembly, burn-in testing, firmware updates, pre-staging at RDP facility.
Week 5: Logistics & Delivery
Secure packaging, freight coordination, delivery to site, physical inspection.
Week 6: Installation & Configuration
Rack mounting, cabling, OS installation, network configuration, storage provisioning.
Week 7-8: Integration & Testing
VMS integration, camera onboarding, AI analytics calibration, performance validation.
Week 8+: Handover & Training
Documentation handover, operator training, support transition, go-live.
Scalability & Growth Path
Expansion options as surveillance requirements grow.
Horizontal Scaling
- Additional Storage Add NAS nodes (up to 2PB)
- More GPU Compute Add GPU servers (up to 8)
- Camera Expansion Scale to 5,000+ cameras
- Multi-Site Federated VMS architecture
Vertical Upgrades
- GPU Upgrade A6000 → H100 migration path
- Storage Upgrade 18TB → 24TB HDD refresh
- Network Upgrade 10GbE → 25GbE fabric
- Analytics Upgrade Enhanced AI model deployment
Support & Warranty
Post-deployment support framework for mission-critical operations.
Standard Warranty
3-year parts replacement with component-level traceability and RMA process.
- Parts replacement warranty
- Component traceability
- RMA logistics coordination
Support Tiers
Business hours to 24×7 mission-critical support options available.
- 9×5 NBD (Business Hours)
- 9×5 4-Hour Response
- 24×7 4-Hour Response (Premium)
Extended Services
AMC and extended warranty options for long-term operations.
- Annual Maintenance Contract
- Extended warranty (4th/5th year)
- On-site resident engineer (optional)
RDP Hardware Portfolio
Make in India certified infrastructure components manufactured at our Hyderabad facility.
