University Computer Lab Infrastructure
Multi-lab deployment architecture for higher education institutions supporting 200+ concurrent students across multiple computer labs. Centralized management, domain services, network storage, and standardized desktop deployment for academic and administrative computing.
Executive Summary
Standardized computing infrastructure for academic institutions with centralized management and multi-lab coordination.
Use Case
Multi-lab computer facilities for undergraduate/postgraduate programs with programming, CAD, simulation, and general computing requirements.
Challenges Addressed
Heterogeneous software requirements, student data management, lab scheduling, software licensing, and standardized deployment across labs.
Key Outcomes
Centralized management, roaming profiles, standardized images, network-based deployment, and 99% uptime during academic hours.

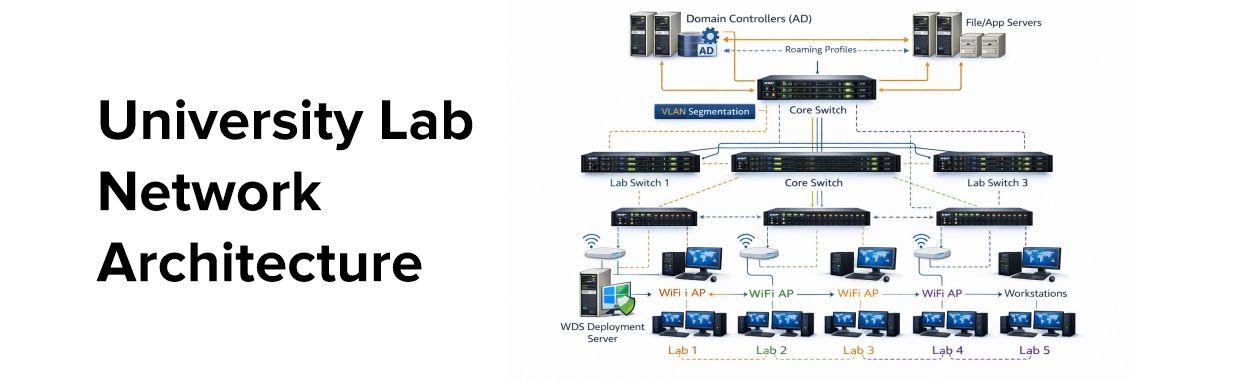

Architecture Overview
Lab Configuration Overview
Flexible deployment across multiple lab types based on department requirements.

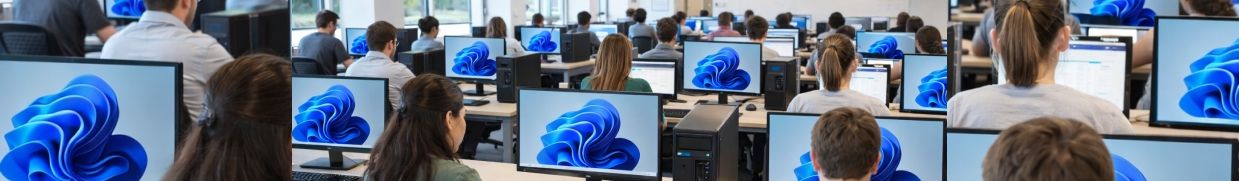

General Computing Lab
Workstations for programming, office applications, web development
Engineering CAD Lab
Higher-spec workstations for AutoCAD, SolidWorks, MATLAB
Multimedia Lab
Graphics workstations for video editing, design applications
Research Computing Lab
High-performance workstations for simulation, data analysis
Detailed Bill of Quantities
Complete hardware specification for 200+ workstation deployment.

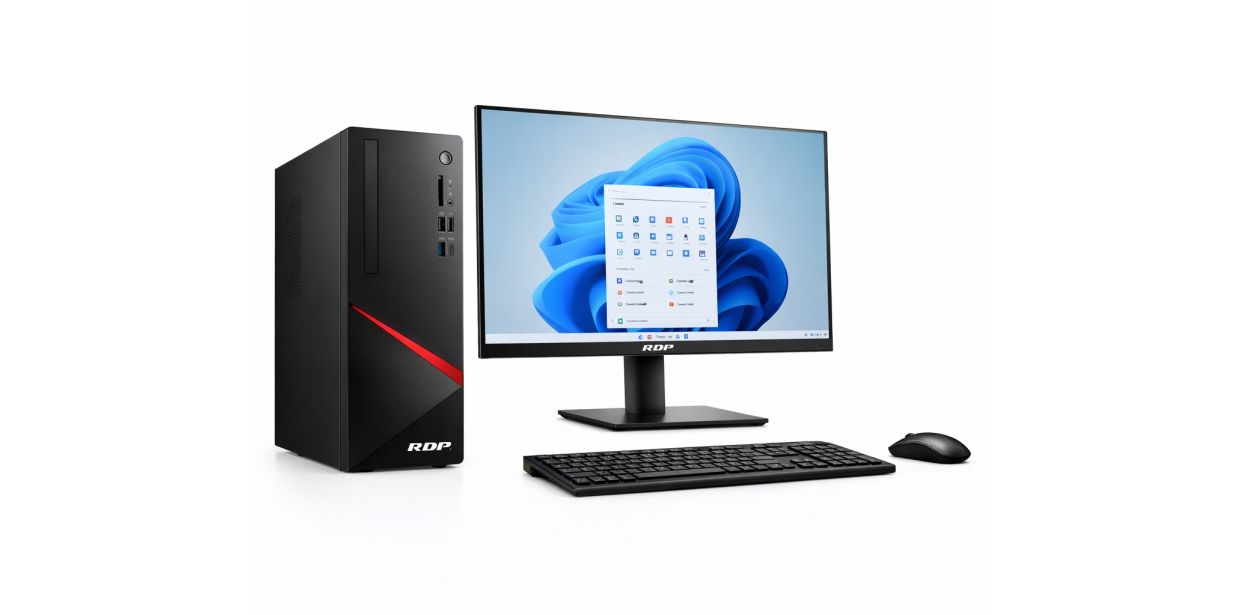

Student Workstations
150 Units| Component | Specifications | Qty | Purpose |
|---|---|---|---|
|
Standard Desktop PC (Entry)
RDP-DT-i5-E
|
|
100× | General computing, programming labs |
|
CAD Workstation (Mainstream)
RDP-WS-i7-M
|
|
40× | Engineering CAD, 3D modeling |
|
Graphics Workstation (Pro)
RDP-WS-i9-P
|
|
10× | Multimedia, video editing, rendering |

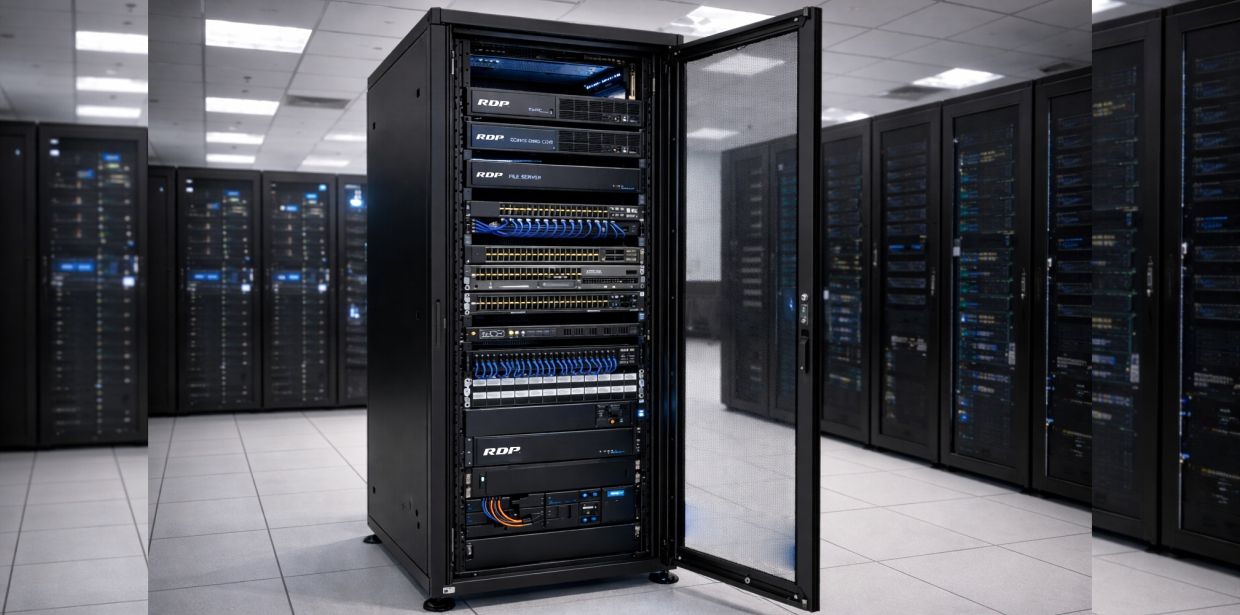

Server Infrastructure
4 Units| Component | Specifications | Qty | Purpose |
|---|---|---|---|
|
Domain Controller Server
RDP-SRV-1U-DC
|
|
2× | Active Directory, DNS, DHCP (HA pair) |
|
File & Deployment Server
RDP-SRV-2U-FS
|
|
1× | File shares, roaming profiles, WDS imaging |
|
Application Server
RDP-SRV-2U-APP
|
|
1× | License management, software deployment |

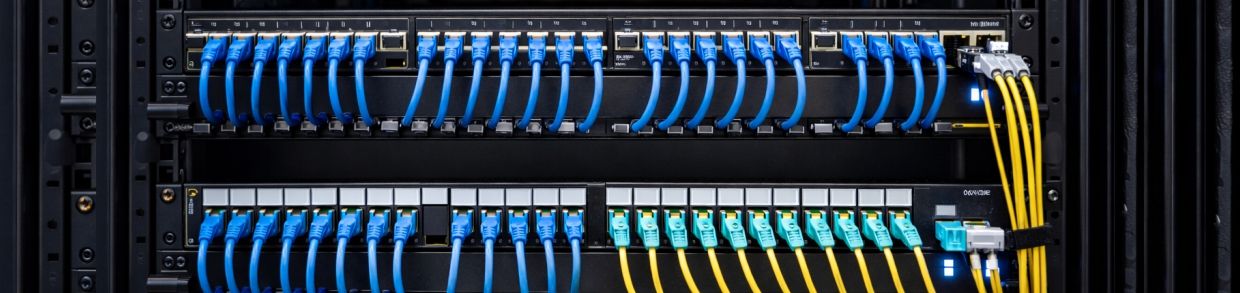

Network Infrastructure
Per Lab| Component | Specifications | Qty | Purpose |
|---|---|---|---|
|
Core Distribution Switch
SW-CORE-24X10G
|
|
1× | Server room core switch |
|
Lab Access Switch
SW-ACCESS-48X1G
|
|
4× | One per lab (50 ports each) |
|
Wireless Access Points
AP-WIFI6-EDU
|
|
8× | Wireless coverage (2 per lab) |
Technical Specifications Summary
Total Workstations
Across 4 specialized labs
Central Storage
Shared file storage with roaming profiles
User Capacity
Student accounts with quotas
Total Power
All workstations + servers combined
Network Bandwidth
Core network backbone
Server Rack Space
Compact server room footprint
Software Stack
Operating Systems
- Workstations Windows 11 Pro Education
- Servers Windows Server 2022
- Dual Boot Option Ubuntu 22.04 LTS
- Image Deployment WDS/MDT
Academic Software
- Office Suite Microsoft 365 Education
- Programming VS Code, Eclipse, NetBeans
- Engineering AutoCAD, MATLAB, SolidWorks
- Design Adobe Creative Cloud
Management & Security
- Identity Active Directory + Azure AD
- Endpoint Security Microsoft Defender / ESET
- Lab Management Faronics Deep Freeze
- Monitoring SCCM / Intune
Licensing Model
- Windows Education Volume License
- Office A3/A5 Education Plan
- CAD Software Educational Site License
- License Server FlexLM / RLM
Reference Architecture Disclaimer
This reference architecture is provided for planning and discussion purposes. Actual configurations may vary based on specific curriculum requirements, existing infrastructure, and budget constraints. Software licensing requirements should be verified with respective vendors. Final BOQ will be prepared after detailed requirements analysis. This document does not constitute a binding quotation.
