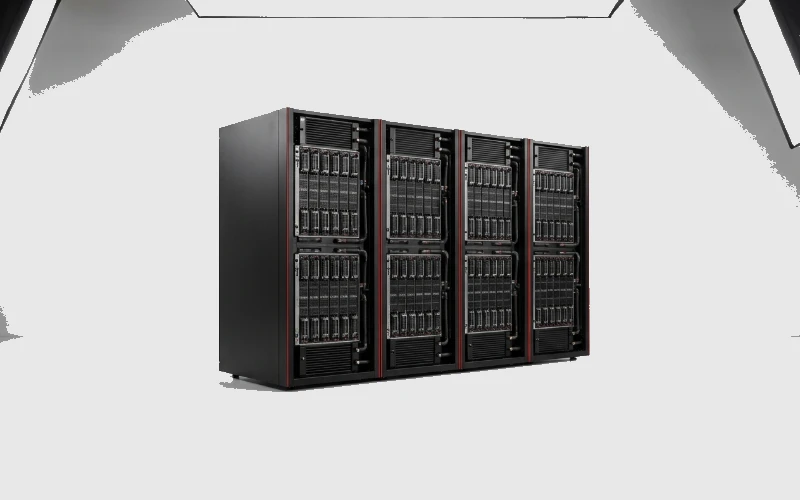

Reference Architecture: Sovereign AI Cluster (Scalable Unit)

This reference architecture specifies an in-country, DPDP-aware GPU cluster built from a repeatable Scalable Unit (SU): a group of 8× H200 nodes joined by NDR/XDR InfiniBand, with shared parallel storage and management. You validate one SU, then replicate it to grow capacity predictably — the standard way to build sovereign AI infrastructure that stays under national control. The design keeps data resident, compute domestic, and support local.

TL;DR — what's validated

• Unit of scale = the Scalable Unit (SU): N × 8-GPU H200 nodes + fabric + storage; replicate to grow.
• Fabric: NDR InfiniBand (400 Gbps/dir) now, XDR 800G (Quantum-X800) for large fabrics — with in-network SHARP reduction (NVIDIA Quantum-X800).
• Sovereignty by design: in-country siting, DPDP data residency, India-based support.
• Grow by replication: validate 1 SU → 2 → N; capacity, power, and network scale in known steps.

Overview & the building block

Sovereign clusters are built bottom-up from a node (8× H200, 1,128 GB HBM3e), grouped into a Scalable Unit (several nodes on a shared fabric + storage), then replicated into a cluster. Designing in SUs makes power, cooling, and network growth predictable and auditable — important when a cluster serves national or regulated workloads.

Key components

Compute. 8× H200 nodes (see the 8× H200 node RA) as the atom; SU size (e.g. 4–16 nodes) is set by the largest training run you must fit in one low-latency domain.

Network fabrics. NDR InfiniBand (400 Gbps/dir, ConnectX-7) delivers ~350 GB/s effective all-reduce on an 8-node H100-class cluster with sub-microsecond latency; SHARP performs reductions in the switch, cutting all-reduce round-trips for large clusters (Spheron, 2026). For very large sovereign fabrics, Quantum-X800 XDR 800G (144×800G, SHARP v4) doubles per-port bandwidth (NVIDIA). Separate OOB management plane.

Storage. Shared all-flash / parallel file system sized to keep every SU's GPUs fed; checkpoint bandwidth scales with node count.

Software/management. Cluster scheduler, NCCL/collectives, ZeRO/FSDP for cross-node sharding, monitoring, and multi-tenant isolation if the cluster is shared.

Design requirements

• Power/cooling: ~10 kW/node; consolidated SUs cross into liquid cooling past ~35 kW/rack.
• Data residency: all storage and compute in-country; access governed under DPDP.
• Redundancy: N+1 at the SU level; fabric and storage designed for node loss.

Validated configurations

• 1 SU (e.g. 4× nodes = 32 GPUs): departmental / single-tenant sovereign workloads.
• Multiple SUs: national/enterprise scale; validated by replication, not by stretching one SU indefinitely.
• Larger is supported but customer-specific — validated to the SU; cluster-wide topology is designed to the workload.

Assumptions & scope

H200-node SUs on InfiniBand; figures are planning specs — validate fabric, storage, and facility with your site. Sovereignty depends on in-country siting + DPDP governance, not just hardware. Specs current July 2026.

Where RDP GPU Mart fits

RDP GPU Mart builds sovereign clusters from DRACO nodes and Scalable Units — India-designed, manufactured, and supported, INR-transparent, and DPDP-aware end-to-end, so a PSU or enterprise can stand up in-country AI capacity that stays under its control. *(Request a sovereign-AI cluster design or quote at RDP GPU Mart.)*

FAQ

What is a Scalable Unit in an AI cluster? A repeatable building block — several 8-GPU nodes on a shared fabric and storage — that you validate once and replicate to grow capacity predictably.

Which fabric for a sovereign training cluster? NDR InfiniBand today, XDR 800G (Quantum-X800) for very large fabrics — both with in-network SHARP reduction (NVIDIA).

How do I keep a cluster sovereign? Site compute and storage in-country, govern data under DPDP, and use India-based hardware and support.

How do I scale capacity? Replicate the Scalable Unit — validate one, then add more — rather than stretching a single unit beyond its tested size.

—
